Cherry G80-2510

From Deskthority Wiki
Jump to navigationJump to search
Cherry G80-2510
Branding Schneider
Manufacturer Cherry
Features 121/122 keys, n-key rollover.
Keyswitches Cherry MX Black
Interface AT and PS/2?
Years of production 1990s

The G80-2510 is a keyboard similar to the 122-key IBM Model M. It has got 122 keys, is not programmable but has full n-key rollover. Keycaps are double-shot and pad printed. It is one of the more rare keyboards which features a full-touch caps lock key with a center key mount. It shares this with the G80-8200.

Features[edit | edit source]

This keyboard is not programmable! However, it has got n-key rollover. The black labels are double-shot, while the green labels are pad printed and clear coated.

Pictures[edit | edit source]

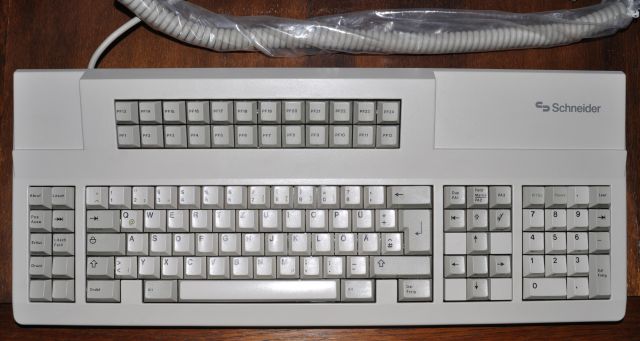

G80-2510 HAD.

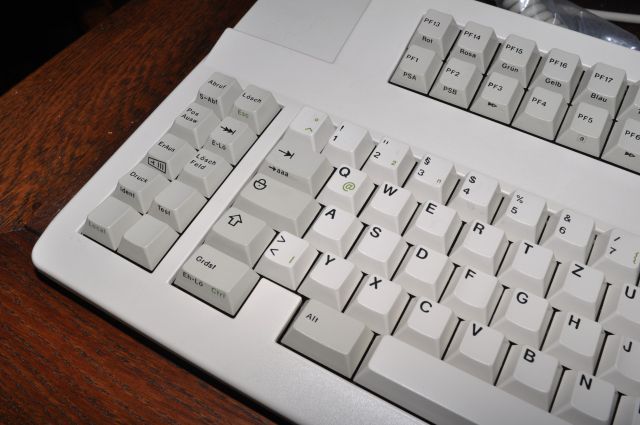

G80-2510 HAD, detail: left function keys.

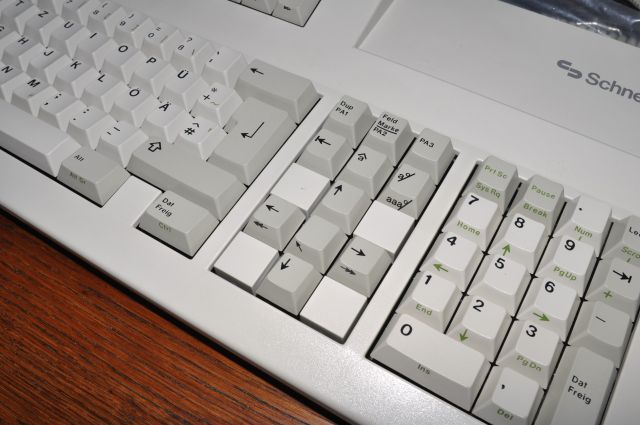

G80-2510 HAD, detail: number and cursor block with additional printing in green.

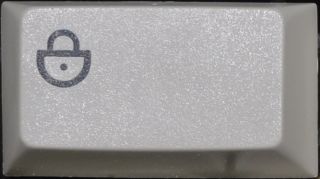

The caps lock key shows a stylised handbag / lock. Please note that this is a full-touch key (meaning that it is not stepped like e.g. the caps-lock on the G80-2100).


Known variants[edit | edit source]

  • G80-2510 HAD (German layout, black switches; for Schneider)

How to disassemble[edit | edit source]

For disassembling, see Category:Cherry terminal keyboards
